CineShooter+ Standard

CineShooter+ is the strongest, most precise, and quietest motion control system in its class. It's a natural evolution of the previous generation high-end motion control head, CineShooter. Built on the same form factor, its ability has been increased while retaining a similar price point. The gearbox has been upgraded to a modified helical planetary design that is 40% stronger than the previous version with virtually no lash (less than .01 degree). It also includes an OLED display that is bigger, daylight visible, and does not distort in extreme temperatures. A huge milestone for CineShooter+ is that it is now optimized for Unreal Engine with kOS Premium's tracker-less integration feature expanding its potential to a whole new level.

QUICK LINKS

ON-BOARD HARDWARE

• Nodal Pan & Tilt head
• Arca-Swiss base mount
• Fully adjustable Arca-Swiss mounting platform to achieve nodal center
• All-aluminum chassis
• Impact-resistant housing
• Weight Capacity: 15 lbs. (25 lbs. with Heavy Duty Support Module) and 8” in width
• Head weight: 5.4 lbs.

• Up to 5 axes of control on-board (2 internal, and 3 external)

CONTROL OPTIONS

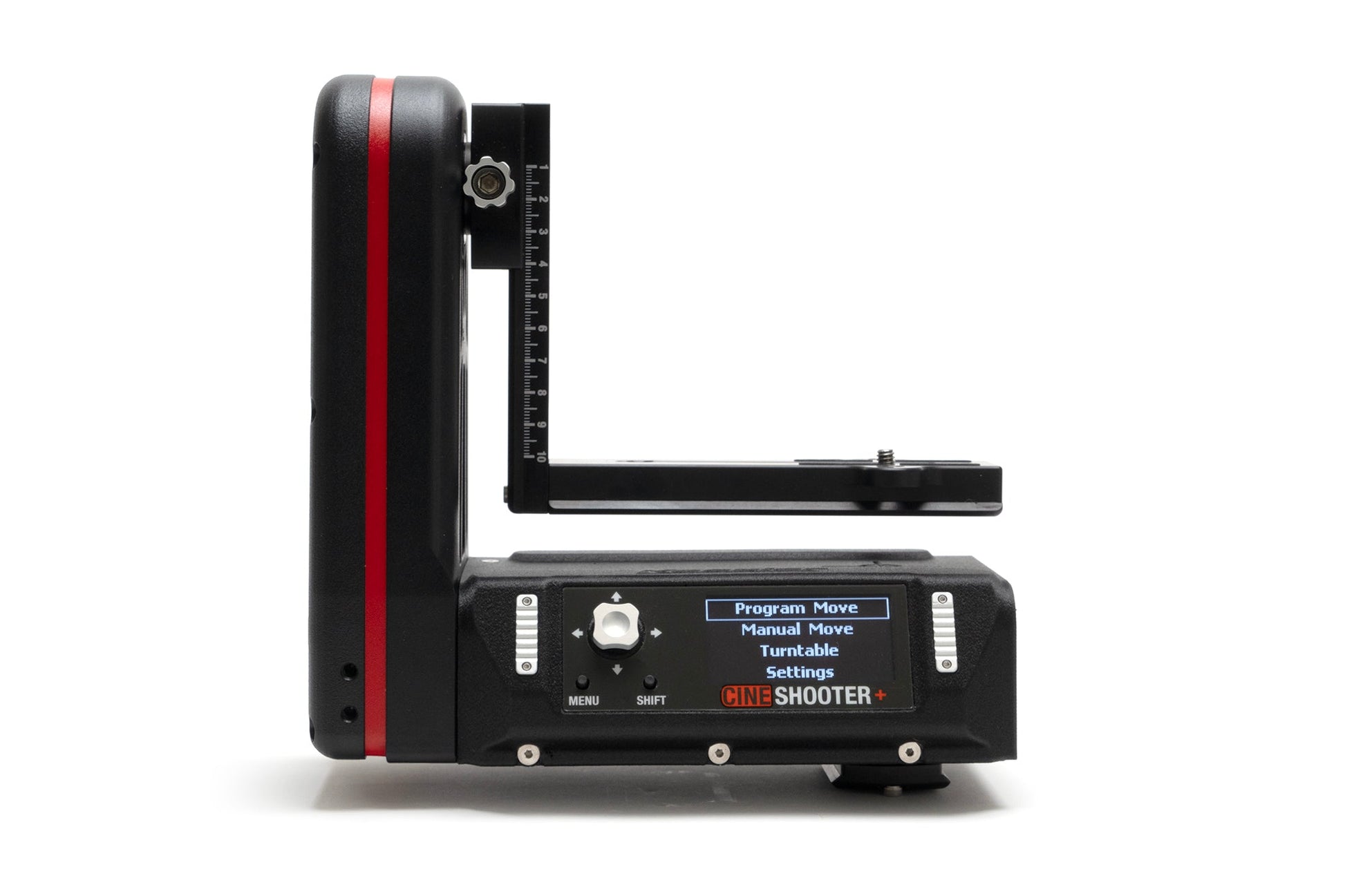

• Onboard control surface with joystick and display interface
• Kessler kOS Software (iPad, Mac OS, Windows)

• CineShooter Remote Mobile App (iPhone, iPad and Android)
• FreeMotion (organic keyframing with the use of Smart Handle)

  [Due to the High Torque, low gear drive ratio, the Smart Handle is not compatible with the Cineshooter+ Macro]

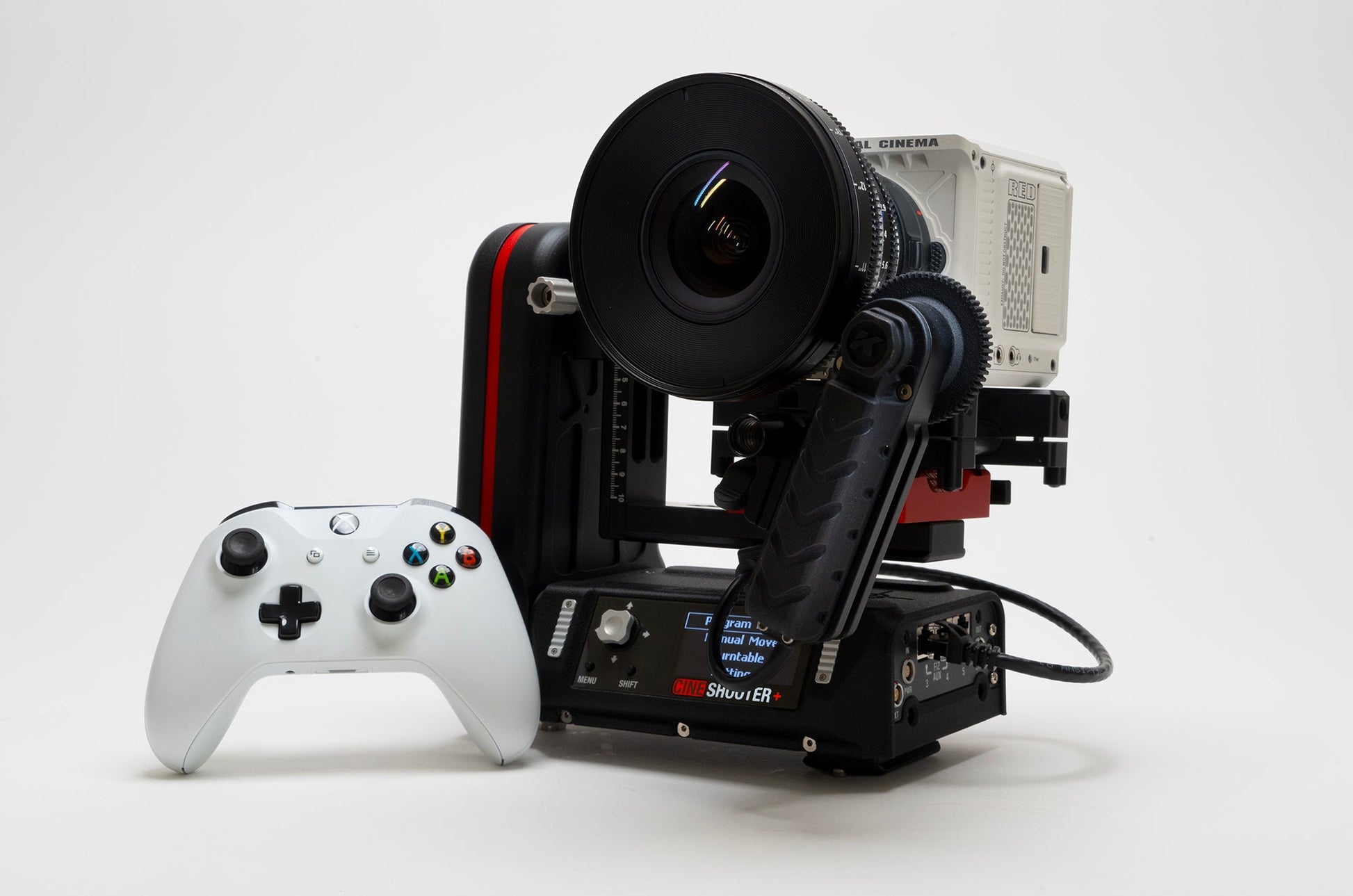

• PS4 and XBOX controller operation with fully custom button mapping
• Client Mode (allows for location-based WiFi connectivity)

• DMC Protocol for real-time moves through third-party developers
• Third-party support for Alpha Wheels
• Third-party support for Dragonframe

SHOOTING MODES

• Live Motion (for programmed or manual moves)
• Timelapse Mode with a built-in intervalometer
• Stop Motion Mode to capture interval frames for stop motion animation
• FreeMotion Mode (when activated “relaxes” the motors, and allows the user to freely hand-position the camera to program keyframes)
• Silent Mode quietly operates motors for sound-sensitive situations
• Fast Mode for specialty VFX shots, high frame rate, and fast camera motion
• GigaPixel (setup huge panoramic shots easily)
• Multi-Lapse (simultaneously shoot up to 3 timelapses at one time)
• Event Mode (program specific targets and move transitions to switch to and from for live events)
• Facial Tracking Mode (requires mobile phone and CineShooter Remote App) [coming soon]
• Emulation Mode provides a “mimic” action utilizing the accelerometer of your phone to translate pan and tilt motion to the head

POWER CAPABILITIES

• 12v DC LEMO 2 Pin Power
• 5.5mm x 2.1mm 12v Barrel Connector for MagPak
• Optional V-Mount or Gold Mount battery plate
